Floorplan - 2016 Redwood RV Redwood 36FB
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-

- List Price: $44,995
-
Sleeps 4
-
3 Slides
-
Rear Living AreaKitchen Island
-
39ft Long
-
13,110 lbs

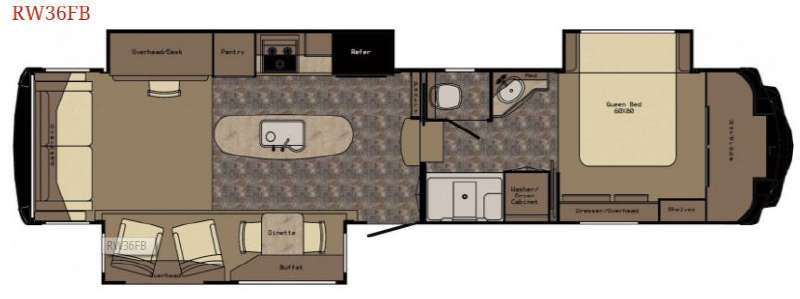

36FB Floorplan
Specifications
Sleeps | 4 | Slides | 3 |
Length | 38 ft 11 in | Ext Width | 8 ft |
Ext Height | 13 ft 2 in | Int Height | 6 ft 10 in |
Hitch Weight | 2625 lbs | GVWR | 16500 lbs |
Dry Weight | 13110 lbs | Cargo Capacity | 2890 lbs |
Fresh Water Capacity | 104 gals | Grey Water Capacity | 90 gals |
Black Water Capacity | 45 gals | Tire Size | ST235/80R16E |
Furnace BTU | 40000 btu | VIN | 4V0FC3627GR006031 |
Description
**Onan Generator **
** Washer / Dryer **
This Redwood fifth wheel offers triple slides for added interior space, a rear living layout, and a convenient kitchen island for added prep space and storage.
As you step inside notice the handy storage closet to the right of the door. Take the steps up in the middle and find a split walk-through bath with private toilet area on the left with separate sink and medicine cabinet just around the corner, plus a tub/shower and washer dryer closet on the right. Sliding doors separate the bath from the front master bedroom.
The bedroom offers a quiet place to rest and relax with a queen bed slide including nightstands and overhead storage space. There is a chest of drawers opposite the bed with more overhead storage, plus a cabinet with shelves along side also. The front wardrobe offers a spacious storage area for all of your clothes with sliding doors.
Back to the main living area find a slide out free standing dinette with buffet and two recliners including overhead cabinets to the left of the entry door. There is a sofa along the rear wall with additional storage above as well.
The large slide opposite the door provides an entertainment center with desk and chair, a 42" TV with overhead storage, drawers and shelves, a three burner range with microwave above, and refrigerator. There is a pantry just to the left of the step up in front. A convenient kitchen island provides added storage, counter prep space, a large sink for cleaning up, plus so much more!
Features
- Solid Cherry Hardwood Cabinetry
- Stiles Pre-Drilled & Screwed Together
- Residential Sized Storage Drawers w/ Solid Wood Bottoms
- Pots & Pans Storage
- Full-Extension Ball-Bearing Drawer Guides
- Residential Hidden Hinges
- EGS Steel Backed Cabinet Anchors
- Large Residential Pantry w/ Appliance Garage & 110v Outlet
- Corian® Countertops
- Corian ® Sink & Stove Covers
- Corian® Backsplash w/ Shelf
- Stainless Steel Oversized Divided Sink
- High Rise Faucet w/Pull Out Sprayer
- Over-Island Lighting
- 12 cu. ft. Norcold S/S Refrigerator w/ Ice Maker
- 3-Burner Flush Mount Stainless Stove
- 22” Deluxe Stainless Baker’s Oven
- 30” Stainless OTR Convection Microwave w/ Exhaust Fan
General Interior
- Straight Roof Line
- LED Recessed Ceiling & Accent Lights
- Solid Hardwood Slide Fascia
- 7’ Interior Slide Room Height
- 15,000 BTU WhisperQuiet A/C w/ Closed Zone Thermostat & Heat Pump (2nd A/C Std. in Bedroom)
- 40,000 BTU Furnace
- Shaw® Residential Carpet w/ Premium Pad
- Individually Hand-Laid Tile
- Central Vacuum
Living Area
- Diamond Collection Furniture Package:
- Residential Sofa (Hide-a-Bed option)
- Residential Wall-Hugger Recliners
- Buffet –Style Adjustable Dinette w/ Leaf Extensions
- 2 Premium Dinette Chairs
- 2 Folding Dinette Chairs
- Day/Night Roller Shades
- Premium Entertainment Center w/ Hidden Desk
- LG® LED HDTV
- Jensen® All-in-one Entertainment
- Interface (CD/DVD/Bluetooth/AM/FM) w/ Surround
- Pre-wired for Winegard® Satellite Systems
- Ceiling Fan
Bathroom
- One Piece Fiberglass Shower
- Niagara Waterfall Glass Shower Door
- Domed Skylight in Shower
- Porcelain Foot Flush Toilet
- Large Mirrored Medicine Cabinet
- Heat & A/C Duct in Bathroom
- Power Roof Vent
- Adjustable Handheld Shower Head
Bedroom
- 660” x 80” iCool™ Gel Foam Mattress
- 110v Outlets on Both Sides of Bed
- LED HDTV
- Residential Dresser w/ Drawers
- Walk-In Closet with Shelving (8 ft. wide) & A/C Vent
- Night Roller Shades
- 2nd 15k BTU WhisperQuiet Air Conditioner w/ Closed Zone Thermostat & Heat Pump
- Custom FIT Chassis
- Falcon 12”/10” I-Beam Drop Frame
- Roto-Flex Pin Box
- Falcon Hydraulic Slide Out System
- w/ Manual Override (Main Slides)
- Falcon 7,000 lb. Axles
- Equa-Flex Suspension System
- Correct Track™ Suspension Alignment System
- Falcon 6-Point Hydraulic Jacks w/Auto Leveling
- Falcon Aluminum 4-Step Entry
- Falcon 2” Receiver Hitch
Sidewalls
- 2” Laminated Wall
- Sanded Block Foam Insulation
- Double Welded Aluminum Frame
- Double Luan Backer
- T60 High-Gloss Gel Coat Fiberglass
Floor
- 5/8” Tongue & Groove Plywood
- 3” Aluminum Subfloor – 11” on Center
- 2 Layers of Batten Fiberglass Insulation
- 2 Layers of Flex Foil Insulation
- Darco Moisture Barrier
- Corrugated PVC Enclosure
- Fully Enclosed Underbelly w/Heated Tanks
Roof
- One Piece Alpha Superflex Roof Material
- 5” Galvanized Stamped Steel Trusses
- Double Trusses at each A/C
- 3/8” Plywood Roof Decking
- 2 Layers of Batten Fiberglass Insulation
- 1 Layer of Flex Foil Insulation
- Fully Walk-able
- Arched for Water Runoff
General Exterior
- Front & Rear Insulated Fiberglass Caps
- LED Pin Box Light
- Aerodynamic Profile
- Exterior Docking Station w/ All Hookups & Black Tank Flush
- Winterization Valve
- Slam Latch Baggage Doors
- Fully Finished, Heated & Insulated Pass-Through Storage
- 104 Gallon Fresh Tank
- (2) 45 Gallon Grey Tanks
- 45 Gallon Black Tank (2 on 39MB)
- Wastemaster Waste Mgmt. System
- Furnace-Heated Tank System
- 12 gal. Hot Water Heater
- Enclosed & Heated PEX Water Lines
- Seamless Residential Heat Ducts
- Radius Zoned A/C Ducting
- Kinro® Frameless Windows
- Carefree Adjustable Awning w/ LED Lights
- Progressive 90 Amp/12v DC Power Converter
- Energy Management System
- 50 Amp Detachable Power Cord
- Dual Battery Box
- 110v Exterior Receptacle
- Battery Disconnect Switch
- (4) G Range Tires (w/ Spare)
- 8 Lug Aluminum Rims
- 2” Self-Adjusting Drum Brakes
- (2) 30 lb. LP Tanks w/Auto Change Over
- R-42 Main Floor , R-28 Roof, R-21 Bath Deck, R-21 Front & Rear Caps, R-14 Slide Ends, R-9 Sidewall
Options
- Whirlpool 20 cu. ft. French Door
- Refrigerator w/Water & Ice
- 3 Burner Cooktop w/3 Drawers
- Fisher-Paykel Dishwasher
- 3rd 15,000 BTU A/C
- King Bed
- Hide-a-Bed Sofa
- Full Body Paint (Mandatory)
- Full Tile Flooring in Living Room
- 5100 BTU Fireplace
- 2-pc. Washer/Dryer
- MaxxFan – Kitchen
- MaxxFan – Bathroom
- Electric Induction Cooktop
- Theater Seating
- myRV™ Pad
- Dual Pane Windows (Mandatory)
- Trail-Air Tri-Glide Pin Box
- Water Filtration System
- 5.5 Onan LP Generator
- Generator Prep
- 40 lb. LP bottles
- Holding Tank Heating Pads
- Outside LP Grill Hookup
- Wireless Backup Camera
- Slide Awning Package
- 2nd Power Awning w/LED (select models)
- Uniguard Awning Upgrade(s)
- 32” Exterior TV (Mandatory)
- Goodyear “H” Tires
- 8000 lb. Axles
- Disc Brakes
- Slide-in-Slide (select models)
- Power Cord Reel - Electric
See us for a complete list of features and available options!
